Part code: DRIVEMASTER BV101489A

DriveMaster
€5950.00
System

DRIVEMASTER

Motor Size

180-4

Nominal Power (kW)

1.5

Intermittent Power (kW)

02

Battery (Vdc)

48

Motor rated speed (rpm)

1500

Description:

DriveMaster 2A Air Cooled

  • Motor with mounting brackets and silent blocks
  • Motor with integrated thrust bearing
  • Vector control inverter IP65
  • NMEA2000 compatible (Apply Transfluid)
  • Main switch and main fuse
  • DC-DC converter 12 Vdc
  • 5m cable for display, lever, key
  • Quick install / easy connect / plug and play

  • 100796

    €1250.00

    DISPLAY TF1 – Full color
    Color display with battery status indication, motor power, motor rpm, motor
    temperature, controller temperature, eco meter, battery amps, battery voltage
    and mode selection. For any type of battery.
    Incl. cable set for monitoring and control.

  • 100831

    €300.00

    DISPLAY E2-Mini LCD
    Simple round display with battery status indication and motor rpm
    Incl. cable set for monitoring and control, Ø51mm

  • 101219A

    €210.00

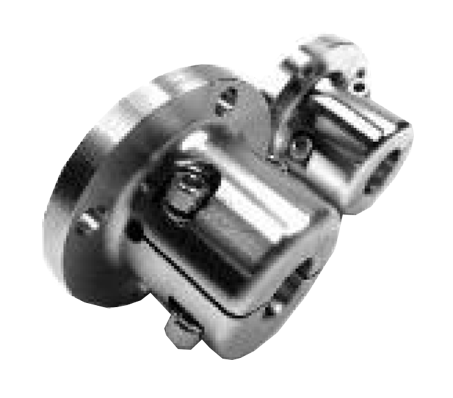

    Motor – shaft clamping Ø 25 mm bore
    To be used in combination with propeller shaft Ø 25 mm. (produced in Stainless Steel)
    Used with DriveMaster until 7 KW.

  • 101423

    €367.50

    Bellcontrol Throttle
    Side Mount

    • Water resistant (IP67)
    • Electronic hall-sensor technology 0-5 Volt.
    • With adapter cable
    • Double control station available upon request

    Stainless Steel version, side mount, IP67 (contactless hall effect sensor, 0-5V output)

  • 101429

    €315.00

    Bellcontrol Throttle
    Top Mount

    • Water resistant (IP67)
    • Electronic hall-sensor technology 0-5 Volt.
    • With adapter cable
    • Double control station available upon request

    Stainless Steel version with black delrin base, top mount, IP67 (contactless hall effect sensor, 0-5V output)
