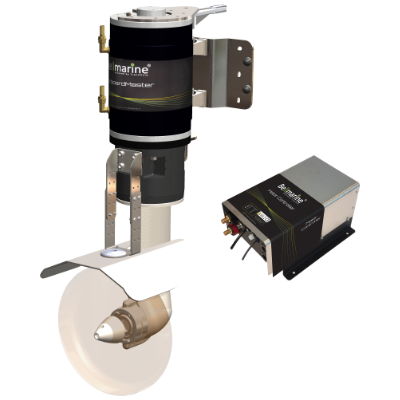

Part code: OUTBOARDMASTER BV101500A

OutboardMaster
€15750.00
System

OUTBOARDMASTER

Motor Size

180-12

Nominal Power (kW)

08

Intermittent Power (kW)

12

Battery (Vdc)

96

Motor rated speed (rpm)

3000

Description:

OutboardMaster 12A Air Cooled
Reduction ratio i= 2
Propeller rpm = motor rpm/i

  • Motor with mounting brackets
  • Vector control inverter IP65
  • NMEA2000 compatible (Apply Transfluid)
  • Anti ventilation / cavitation plate (incl. anode)
  • Main switch and main fuse
  • DC-DC converter 12 Vdc
  • 5m cable for display, lever, key
  • Quick install / easy connect / plug and play
  • Leg by Yanmar

  • 100796

    €1250.00

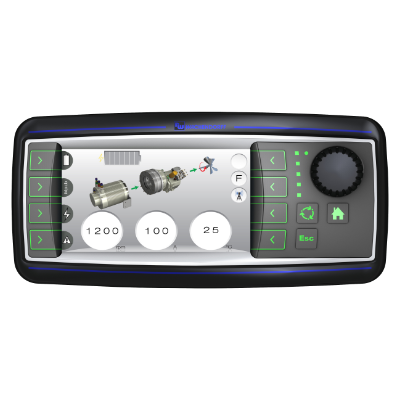

    DISPLAY TF1 – Full color
    Color display with battery status indication, motor power, motor rpm, motor
    temperature, controller temperature, eco meter, battery amps, battery voltage
    and mode selection. For any type of battery.
    Incl. cable set for monitoring and control.

  • 100831

    €300.00

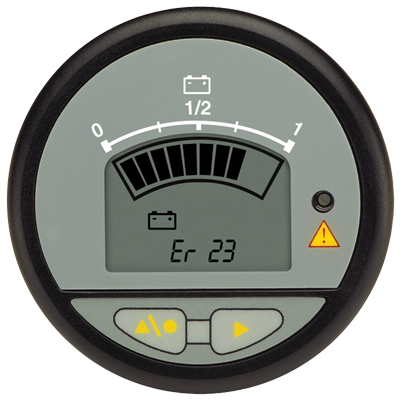

    DISPLAY E2-Mini LCD
    Simple round display with battery status indication and motor rpm
    Incl. cable set for monitoring and control, Ø51mm

  • 101423

    €367.50

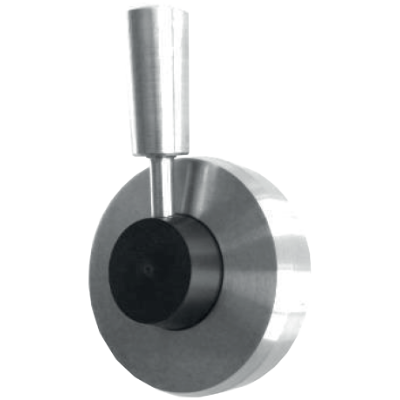

    Bellcontrol Throttle
    Side Mount

    • Water resistant (IP67)
    • Electronic hall-sensor technology 0-5 Volt.
    • With adapter cable
    • Double control station available upon request

    Stainless Steel version, side mount, IP67 (contactless hall effect sensor, 0-5V output)

  • 101429

    €315.00

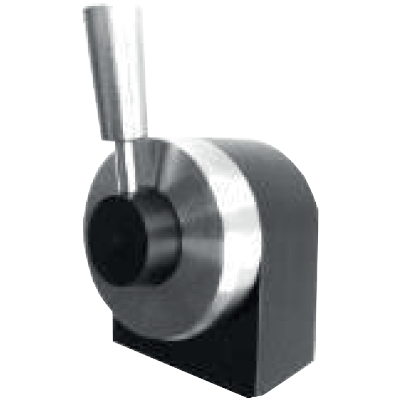

    Bellcontrol Throttle
    Top Mount

    • Water resistant (IP67)
    • Electronic hall-sensor technology 0-5 Volt.
    • With adapter cable
    • Double control station available upon request

    Stainless Steel version with black delrin base, top mount, IP67 (contactless hall effect sensor, 0-5V output)
